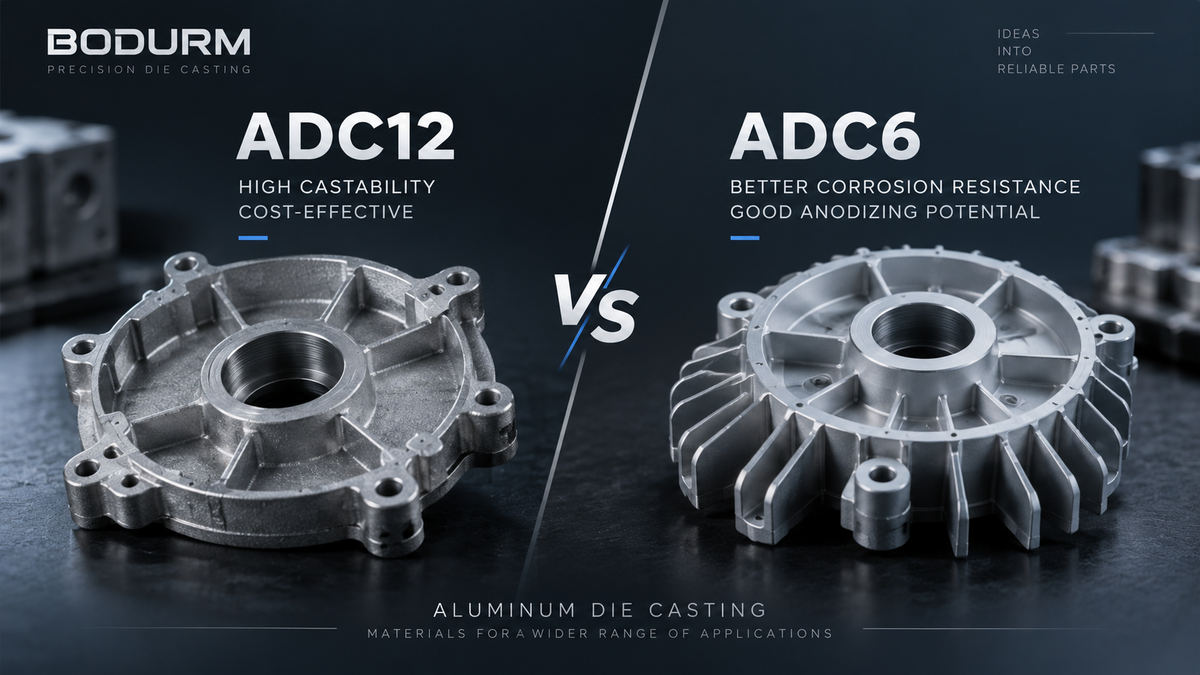

ADC12 vs ADC6 Aluminum Die Casting: What’s the Difference?
ADC12 and ADC6 are both aluminum alloys used for die casting, but they are designed for different manufacturing and performance requirements.
ADC12 is one of the most commonly used aluminum die-casting alloys for general industrial components. It offers excellent castability, good dimensional stability and efficient production for complex parts.
ADC6, by comparison, contains much less silicon and is often selected when corrosion resistance, surface appearance or anodizing performance is more important.
Understanding the differences between ADC12 and ADC6 can help engineers select the appropriate alloy before tooling and production begin.
ADC12 Aluminum Alloy
ADC12 is widely used in high-pressure die casting because of its excellent casting characteristics.
Its relatively high silicon content improves fluidity during casting, allowing the molten aluminum to fill complex cavities, thin walls and detailed features more effectively.
Typical advantages of ADC12 include:
• Excellent die-casting performance
• Good fluidity for complex geometries
• Good dimensional stability
• Suitable for thin-wall components
• Good machinability
• Cost-effective for volume production
• Widely available for industrial die casting
Because of these characteristics, ADC12 is commonly used for housings, brackets, structural components, automotive parts, lighting components, industrial components and many other die-cast products.
ADC6 Aluminum Alloy
ADC6 is an aluminum-magnesium based die-casting alloy with a much lower silicon content than ADC12.
It can be considered for applications where corrosion resistance, surface quality and certain finishing requirements are more important than maximum casting fluidity.
Typical characteristics of ADC6 include:
• Good corrosion resistance
• Good surface appearance
• Better suitability for decorative surface requirements
• Suitable for certain anodizing applications
• Good mechanical properties
• Lower casting fluidity than ADC12
• More demanding die-casting process control
Because ADC6 is less fluid than ADC12, component geometry and tooling design become particularly important. Thin walls, long flow paths and complex structures should be evaluated carefully before selecting the alloy.
ADC12 vs ADC6: Key Differences
The main difference between ADC12 and ADC6 is not simply which alloy is “better.” The correct choice depends on the component design, appearance requirements, mechanical requirements, production volume and secondary processes.
ADC12 is generally the more practical choice when:
• The component has complex geometry
• Good casting fluidity is important
• Thin-wall features are required
• High-volume production efficiency is a priority
• Conventional painting, coating or other secondary finishing will be used
ADC6 may be considered when:
• Corrosion resistance is particularly important
• Surface appearance is a key requirement
• Anodizing is required
• The component geometry is suitable for the alloy
• The project can accommodate more demanding casting control
Can ADC12 Be Anodized?
ADC12 can technically be anodized, but achieving a consistent decorative anodized appearance can be difficult.
The relatively high silicon and other alloying elements in ADC12 can affect the appearance of the anodized surface. Color uniformity and cosmetic consistency may therefore be more difficult to control compared with aluminum alloys designed for better anodizing performance.
For functional surface requirements, ADC12 may still be suitable depending on the specification. However, if a customer requires a high-quality decorative anodized finish, alloy selection should be considered early in the product-development process.
Is ADC6 Better for Anodizing?
ADC6 can generally provide better anodizing potential than conventional high-silicon die-casting alloys such as ADC12.
However, the final appearance still depends on several factors, including casting quality, alloy composition, surface preparation, polishing or blasting processes and anodizing parameters.
For projects with strict cosmetic requirements, we recommend validating the complete process with production-representative samples before mass production.
Which Alloy Should You Choose?
For most conventional high-pressure die-cast components, ADC12 remains a practical and widely used choice because of its casting performance, production efficiency and ability to manufacture complex geometries.
ADC6 becomes more interesting when corrosion resistance or surface appearance is a major project requirement.
The alloy should therefore be selected together with the component structure, tooling design, machining requirements and surface-finishing specification rather than as an isolated material decision.
Die Casting Support from Tooling to Production
At Bodurm, we support custom aluminum die-casting projects from drawing review and tooling development through die casting, CNC machining, secondary operations and quality control.
Before tooling, our team can review component geometry, alloy requirements, machining features and surface-finishing requirements to help determine an appropriate manufacturing approach.
Send Us Your Drawings
If you are deciding between ADC12, ADC6 or another aluminum die-casting alloy for a new component, send us your drawings or 3D files together with the application, surface and production requirements.
Our team can provide a preliminary manufacturing review before tooling and production.
